• Fitting Style: Tee adapter with an on-the-run swivel branch
• Run Configuration: -16 AN Male to -16 AN Male
• Branch Configuration: -16 AN Female Swivel (located on the side branch)
• Auxiliary Port: Integrated 1/8" NPT port (typically used for pressure or temperature sending units)
• Material: 6061-T6 aircraft-grade aluminum alloy
• Manufacturing Process: CNC machined from a single billet block for structural integrity
• Finish: Bright-dip black anodized coating for protection against corrosion and chemical exposure
• Angle Seat: Standard 37-degree AN flare configuration
• Uses: Transmissions/coolers, Oil/Coolers, Fuel Systems, Gearboxes and components, Differentials and components
• Color: Anodized black

• Series Compatibility: 3000 Series (Plugs and sockets within this series mate together; they will not connect with 2000 or 5000 series components).
• Thread/Attachment Style: -10 AN Male O-Ring Boss (ORB) straight adapter.
• Seal Material: Standard fluorocarbon / FKM seals (highly compatible with oil, water, transmission fluid, and standard fuels).
• Pressure Rating: 200 psi maximum operating pressure.
• Material: Lightweight, high-strength 6061-T6 aluminum body with brass valves

Specifications and features:

1. Jiffy-tite #32110 - Straight Male Quick-Connect Plug to -10 AN Male O-Ring Boss (ORB) 2. Jiffy-tite #31610ED- 45-Degree Female Quick-Connect Socket to -10 AN Reusable Compression Hose End **Specifications & Compatibility:** * Series: 3000 Series (Important Note: Sockets and plugs must match within the same series. These will NOT click or couple into Jiffy-tite 2000 or 5000 series hardware. * Size: -10 AN configurations on both components. * Valving: 100% Valved configuration. Both pieces feature automatic, leak-free fluid shutoff technology upon disconnect. * Seals: Premium standard FKM fluorocarbon seals (compatible with oil, water, transmission fluid, pump gas, and race fuel). * Material: CNC-machined 6061-T6 aerospace-grade aluminum. * Limits: Max 200 PSI operating pressure.
2. N.O.S. CLEARNACE ITEMS are new/unused that may have imperfect finish or packaging and are NON-RETURNABLE

-12 AN Male to -10 AN Male O-ring Adapter Anodized Black

-8 AN Male to 3/8" NPT Anodized Black

-10 AN Male to -10 AN O-Ring Male

Anodized Blue

N.O.S. Clearance Item

-8 PushLock to -8 Female 90 Degree fitting

Clearance items are new unused that have been removed form packaging or may have imperfect finishes and are in new condition.

Clearance Items CAN NOT be returned

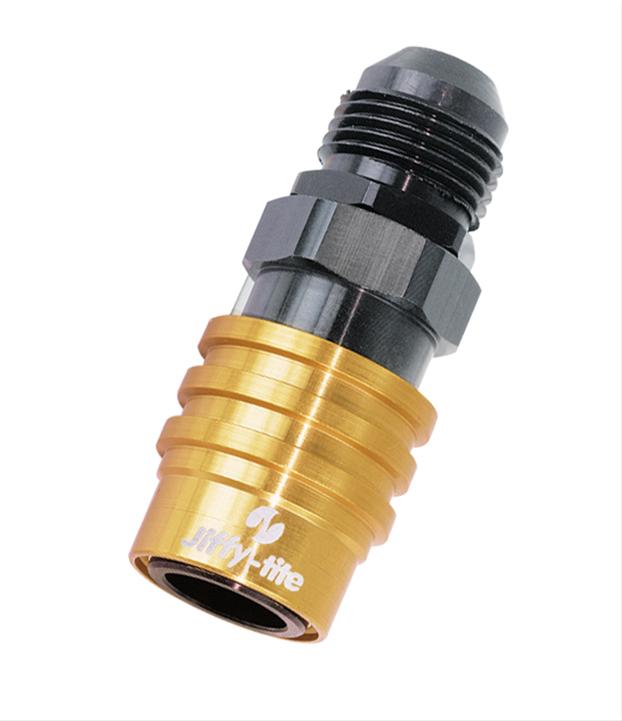

Jiffy-Tite offers some of the best quick-connect hose ends on the market with their 3000 Series Hose Ends. These hose ends are constructed from 6061-T6 Aluminum, brass valves, and stainless steel ball bearings that offer corrosion-resistant and lightweight connections. Approved for use by the NHRA and IHRA.

• -8 AN
• Straight fitting angle
• Female quick-disconnect end style
• Reusable nut hose end
• Black anodized finish
• 6061-T6 Aluminum construction
• Sold each

FLUOROCARBON (FKM) SEAL Oil, Transmission Fluid, Water, E85 (Ethanol Fuel Blend), Gasoline, diesel.

ETHYLENE PROPYLENE (EPDM) SEAL Nitromethane Ethanol (Ethyl Alcohol), Brake Fluid, Glycol, Methanol (Methyl Alcohol)

NITRILE (NBR) SEAL Alcohol (Fuel), Oxygenated Fuel.
